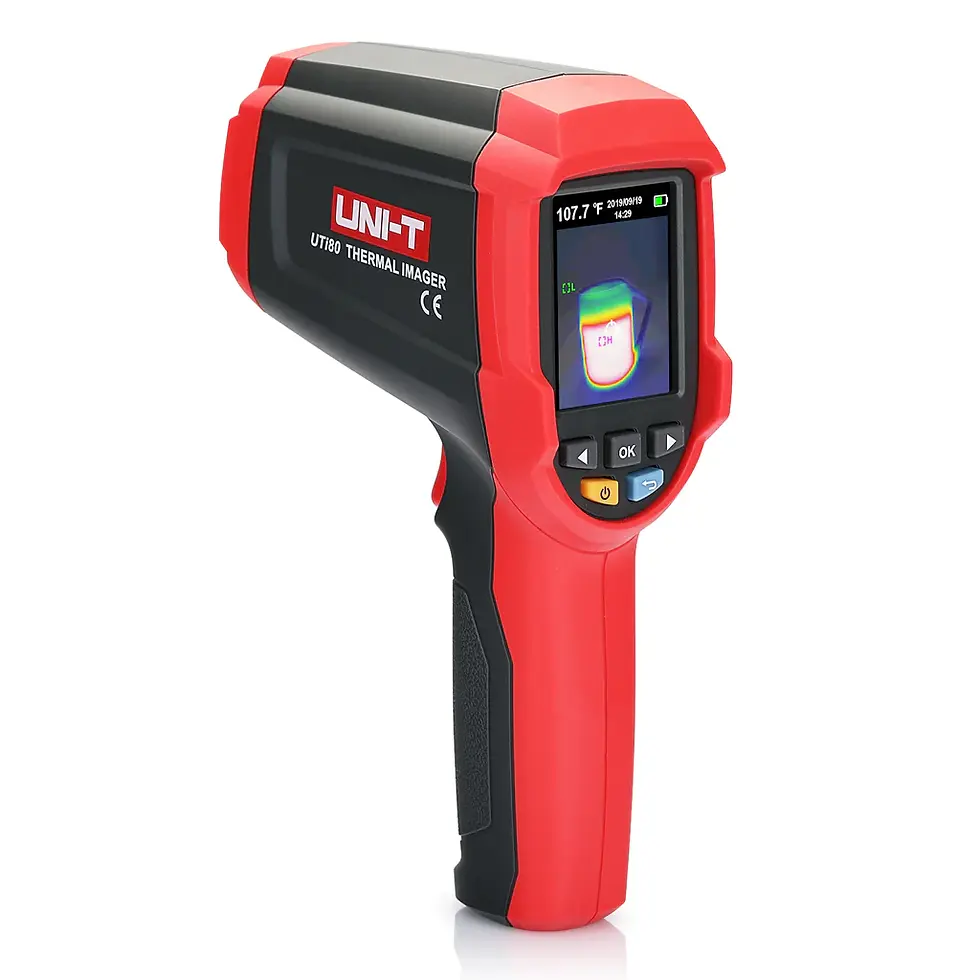

Thermal imaging test instruments, also known as thermal cameras or infrared cameras, are devices that detect and visualize the infrared radiation emitted by objects and convert it into a visible thermal image. These instruments have various applications in fields such as electrical inspection, building diagnostics, mechanical maintenance, and more. Here's an overview of thermal imaging test instruments:
Working Principle: Thermal cameras use special sensors, typically microbolometers, to detect infrared radiation emitted by objects. The sensors measure the intensity of the infrared radiation, which correlates to the temperature of the object. The captured data is then processed and displayed as a thermal image, where different colors represent different temperature levels.
Thermal Images: The thermal images generated by these instruments allow users to see and interpret temperature variations in real-time. Warmer areas appear as red, orange, or yellow, while cooler areas appear as blue or purple. This visual representation helps identify anomalies, hotspots, and temperature gradients that may indicate potential issues or abnormalities.
Features and Functionality: Thermal imaging test instruments offer a range of features and functionalities to enhance usability and analysis. These may include:
Temperature Measurement: Thermal cameras can provide temperature measurements at specific points or areas within the thermal image. Some models offer spot temperature measurement, multiple temperature cursors, or programmable temperature alarms.
Image Fusion: Some thermal cameras allow for image fusion, which overlays the thermal image with a visible light image. This helps provide better context and identification of objects or areas within the scene.
Multiple Measurement Modes: Depending on the instrument, various measurement modes may be available, such as spot measurement, area measurement, line profile, or isotherm analysis.
Image and Data Storage: Thermal cameras often have internal storage or the capability to store images and data externally. This allows for documentation, analysis, and comparison of thermal images over time.
Connectivity and Reporting: Advanced thermal cameras may offer connectivity options, such as Wi-Fi or Bluetooth, for data transfer and integration with software applications. They may also have built-in reporting capabilities to generate professional reports.
Applications:
Electrical Inspection: Thermal cameras are widely used for inspecting electrical systems to identify overheating components, loose connections, or overloaded circuits. They help prevent electrical failures, fire risks, and improve maintenance practices.
PCB Troubleshooting: Looking for hotspots on a PCB can be a good indicator of a troubled component or trace.
Building Diagnostics: In the construction and building industry, thermal cameras are used to detect insulation defects, moisture intrusion, HVAC system performance, and energy efficiency evaluations.
Mechanical Maintenance: Thermal imaging is valuable for identifying mechanical issues in rotating equipment, motors, pumps, and bearings. It can detect abnormal heat patterns and potential failures.
Energy Auditing: Thermal cameras assist in energy auditing by locating areas of heat loss or inefficient insulation, enabling improvements in energy consumption and cost savings.
Research and Development: Thermal cameras find applications in various research fields, including materials testing, medical diagnostics, and scientific experiments.
Thermal imaging test instruments have become more accessible and affordable in recent years, allowing professionals and individuals to benefit from their capabilities. It's important to note that interpreting thermal images requires training and experience to accurately identify and understand temperature patterns and anomalies.
Troubleshooting with a Thermal Camera 101
Using a thermal imaging camera to troubleshoot an electronic PCB can be an effective method to identify temperature variations and potential issues. Here's a step-by-step guide on how to troubleshoot a PCB using a thermal imaging camera:
Prepare the PCB: Ensure that the PCB is powered on and operational. If possible, let the PCB run for a few minutes to stabilize its temperature and allow any heat-generating components to reach their normal operating conditions.
Set Up the Thermal Imaging Camera: Turn on the thermal imaging camera and allow it to initialize. Set the camera to the appropriate temperature range and adjust the emissivity setting based on the material of the PCB and components being analyzed. Follow the camera's user manual for specific instructions on setting up the camera.
Visualize the PCB: Position the thermal imaging camera so that the entire PCB or the specific area of interest is in the camera's field of view. Aim for a clear and unobstructed view to obtain accurate thermal readings.
Capture Thermal Images: Capture thermal images of the PCB, focusing on areas where temperature anomalies or components of interest are expected. Take multiple images from different angles, distances, and perspectives to gather comprehensive data.
Analyze the Thermal Images: Review the captured thermal images on the camera's screen or transfer them to a computer for further analysis. Look for temperature variations, hotspots, or abnormal temperature gradients. Pay attention to components that are significantly hotter or cooler than their surroundings.
Identify Potential Issues: Compare the thermal images with the PCB's schematic diagram or layout to identify components and their corresponding thermal patterns. Focus on components known to generate heat or critical components that should not exceed specific temperature limits. Note any abnormalities or areas that require further investigation.
Verify Temperature Readings: Use the temperature measurement features of the thermal imaging camera, such as spot temperature measurement or multiple temperature cursors, to verify specific temperature readings on the PCB. Compare these readings to specifications or known acceptable temperature ranges.
Follow Up with Visual Inspection: After identifying potential issues through thermal imaging, perform a visual inspection of the PCB to physically examine the components, connections, and any other visible abnormalities. Thermal imaging can guide you to areas that require closer inspection or potential problem areas.
Take Corrective Actions: Based on the findings from thermal imaging and visual inspection, take appropriate corrective actions. This may involve replacing faulty components, improving heat dissipation, checking connections, or adjusting operating conditions.
Retest and Validate: After addressing identified issues, retest the PCB with the thermal imaging camera to verify that the corrective actions have resolved the temperature variations or abnormalities. Ensure that the thermal patterns align with expectations and that components are operating within acceptable temperature ranges.
Remember, thermal imaging is a valuable tool, but it should be used in conjunction with other diagnostic methods and best practices. It provides insights into temperature-related issues, but it does not replace comprehensive troubleshooting techniques or in-depth knowledge of the PCB and its components.
I'll be reviewing Thermal Imaging cameras next month!
